ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 01 · 2026 · 27/07
INDOOR LIGHTING · LINEAR PROFILES
Surface Magnetic Track
48V rail
LFLNCS-BK

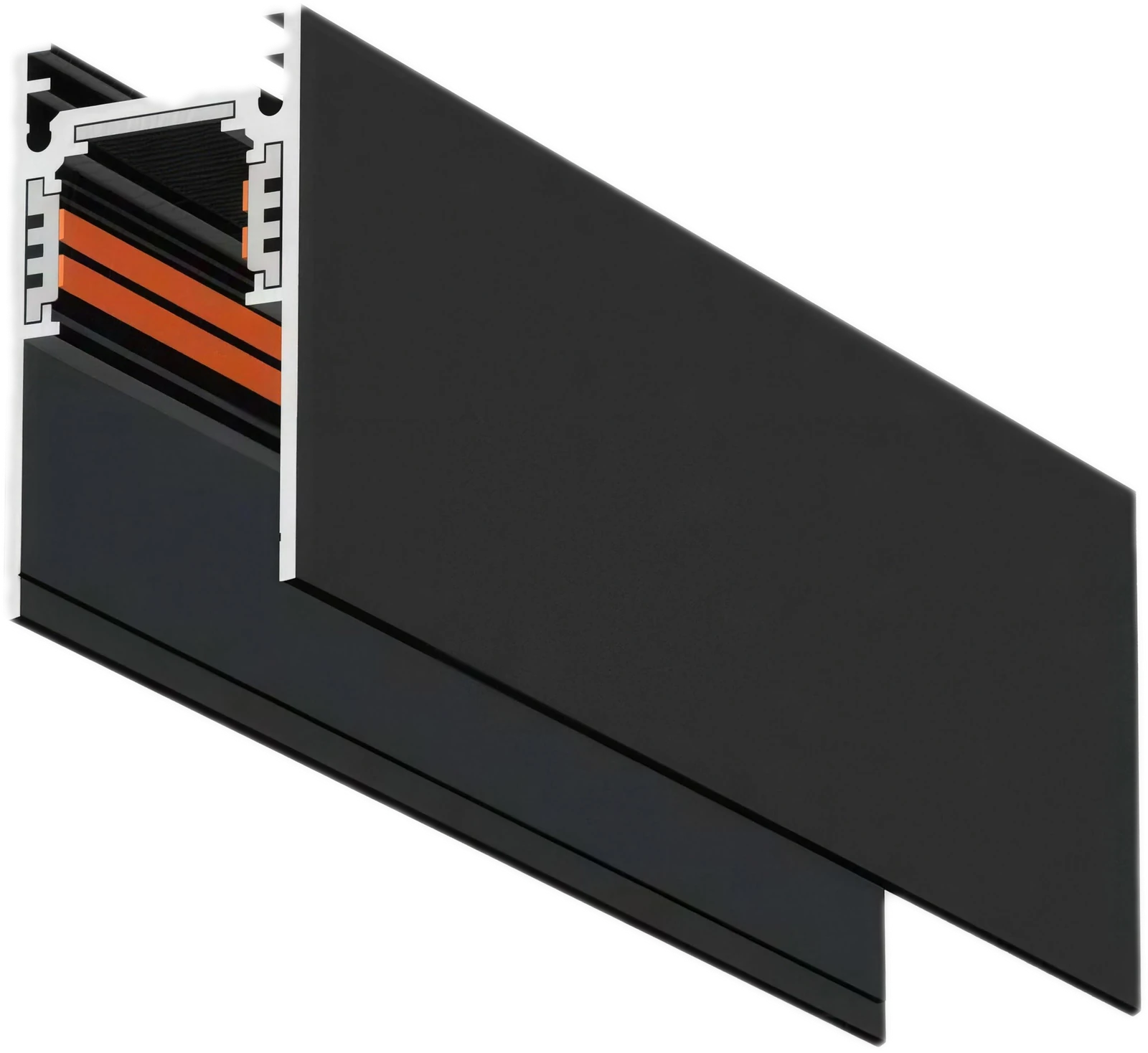

The 48 V magnetic rail that LUXFLARE magnetic heads mount to — surface-fixed to the ceiling and supplied in one, two or three metre lengths. Die-cast aluminium, 27 mm wide, in black.
MOUNTING
Ceiling surface
LUMINAIRE DETAILS
Product Code
LFLNCS-BK
Product Type
Linear Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
—
Colour Temp.
—
IP Rating
—
Life Time
50,000 Hours
Input Voltage
48V DC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Size
L 1000 / 2000 / 3000 x W 27mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C

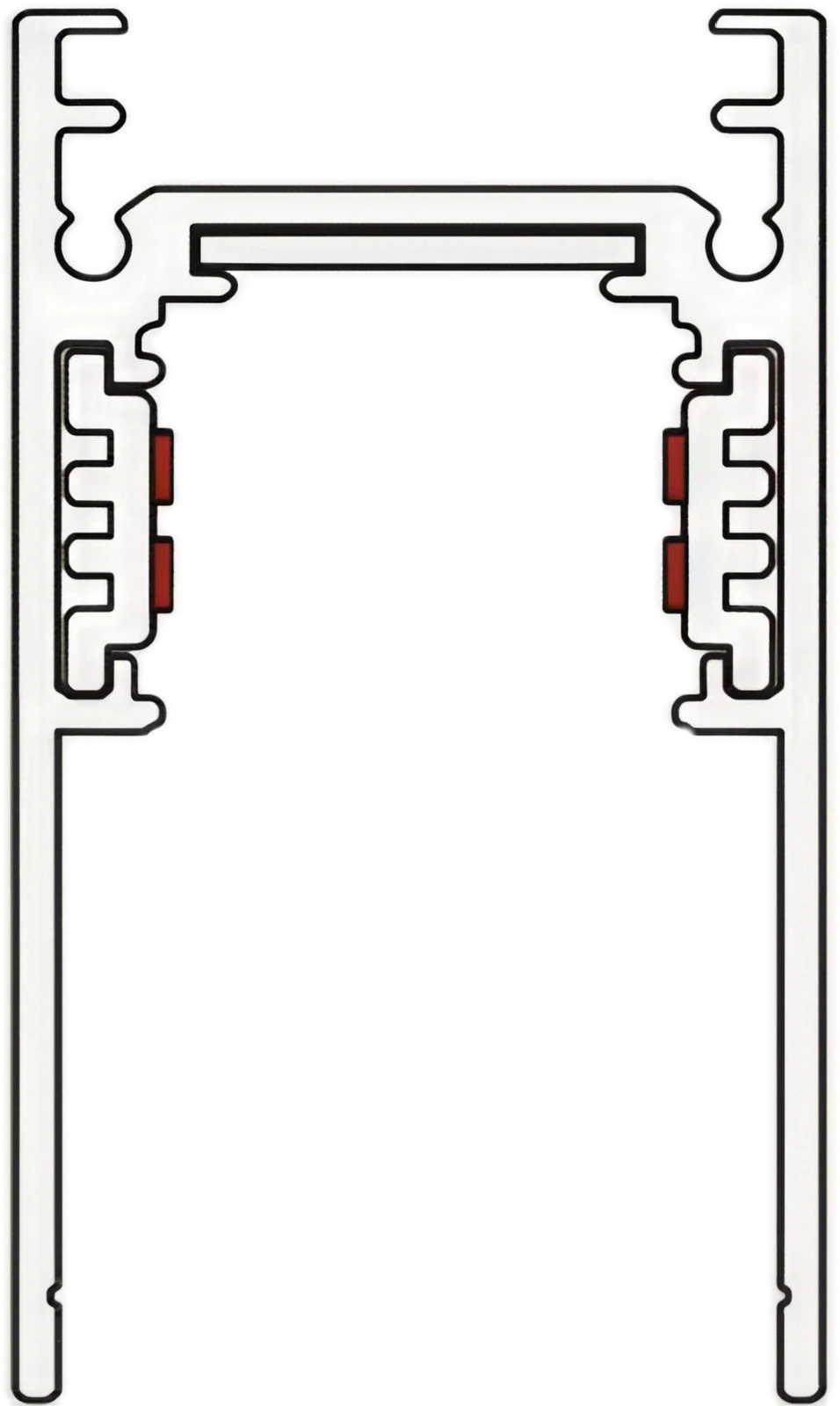

DIMENSIONAL DRAWING · MM
FINISHES
Black
LED
CreeLumiledsBridgeluxVSTridonicEpistar
DRIVER
VSTridonicPhilipsOsramLifudEagleriseLuxflare
SUMMARY
WATTAGE
—
CCT
—
INGRESS
—
FINISH
BK
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
