ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 04 · 2026 · 24/07
INDOOR LIGHTING · LED DOWNLIGHTS
Surface Light
compact surface
LFDLCS-5/10/20W-3/4K-IP65
Compact 5W surface-mounted light — a small five-cell die-cast block with a wide 120° wash, in four housing finishes.
MOUNTING
Wall surfaceStandalone
LUMINAIRE DETAILS
Product Code
LFDLCS-5/10/20W-3/4K-IP65
Product Type
Down Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
5 / 10 / 20 W
Colour Temp.
3000 / 4000 K
IP Rating
IP65
Chip Type
COB
Luminous Flux
550 lm
CRI
> 80 · > 90
Beam Angle
Medium (20°-35°)
Life Time
50,000 Hours
Driver
Integrated
Dimming
0-10V / 1-10V
PHYSICAL DETAILS
Housing Material
Alu Die Cast · Polycarbonate (PC) · Stainless Steel · Sheet Steel (CRCA)
Diffuser Material
Polycarbonate (PC) · Acrylic (PMMA)
Diffuser Optics
Clear · Opal · Lens
Size
Ø 10 × W 10 × H 10 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C

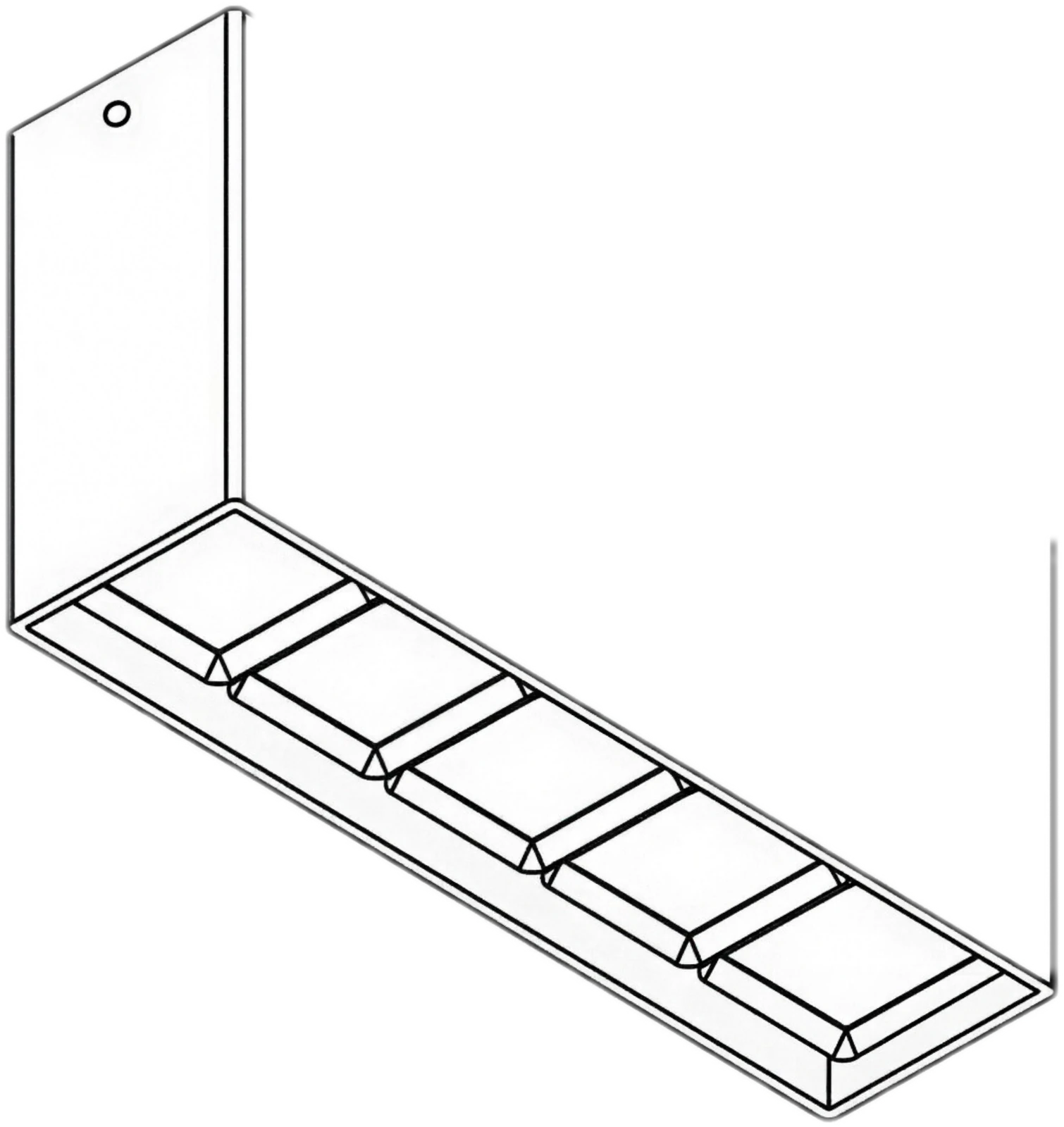

DIMENSIONAL DRAWING · MM
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
120°
FINISHES
Black
Silver Gray
Dark Gray
White
LED
BridgeluxEpistarOsram
DRIVER
LifudEagleriseLuxflare
SUMMARY
WATTAGE
5 · 10 · 20
CCT
3000 · 4000
INGRESS
65
FINISH
BK · SG · DG · WH
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
