ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 00 · 2026 · 27/07
INDOOR LIGHTING · LED DOWNLIGHTS
Surface Cylindrical Light 10W
surface cylinder
LFDLS-10W-3K-IP65-BK

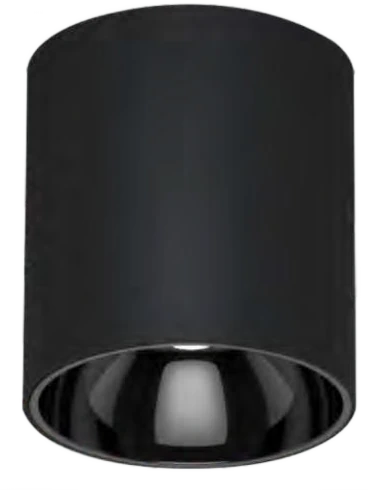

The higher-output sibling of the Ø70 surface cylinder — a Ø75 mm, 100 mm tall cylindrical spot at 10 W COB behind a glass diffuser, fixed at a 36° beam. Rated IP65, black finish.
MOUNTING
Surface
LUMINAIRE DETAILS
Product Code
LFDLS-10W-3K-IP65-BK
Product Type
Down Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
10 W
Colour Temp.
3000 K
IP Rating
IP65
Chip Type
COB
Luminous Flux
900 lm
CRI
> 80
Beam Angle
36°
Life Time
50,000 Hours
Driver
External
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Size
Ø 75 × H 100 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
36°
FINISHES
Black
LED
BridgeluxEpistarOsram
DRIVER
LifudEagleriseLuxflare
SUMMARY
WATTAGE
10
CCT
3000
INGRESS
65
FINISH
BK
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
