ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 01 · 2026 · 17/08
OUTDOOR LIGHTING · POST-TOP

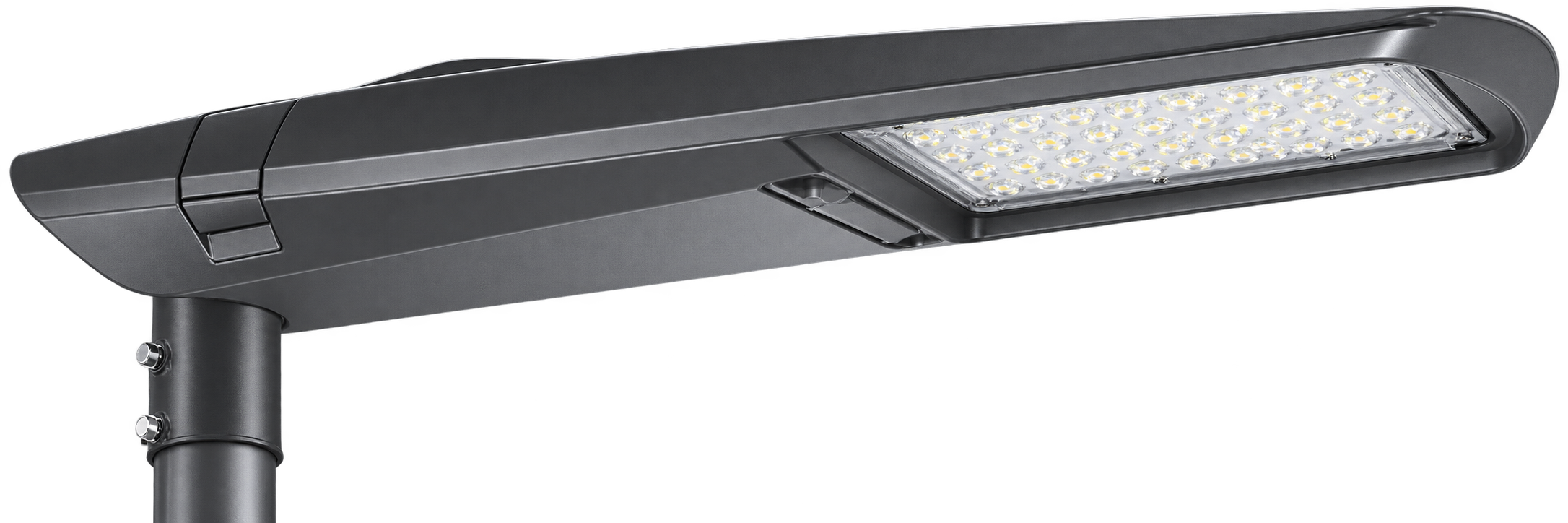

Street Light 90W
pole-mounted
LFPTSA-90W-3K-IP66-DG/SG
A 90 W LED street light measuring 652 x 255 x 114 mm, producing 11,700 lm through lens optics on an internal, DALI-dimmable driver. Rated IP66 and finished in dark grey or silver-grey, for pole-mounted road lighting on 100-277V AC.
MOUNTING
Standalone
LUMINAIRE DETAILS
Product Code
LFPTSA-90W-3K-IP66-DG/SG
Product Type
Post-Top Light
Application Area
Outdoor
PRODUCT DETAILS
Wattage
90 W
Colour Temp.
3000 K
IP Rating
IP66
Chip Type
SMD
Luminous Flux
11700 lm
CRI
> 70
Life Time
50,000 Hours
Driver
Internal
Dimming
DALI
Input Voltage
100-277V AC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Diffuser Optics
Lens
Size
L 652 × W 255 × H 114 mm
Operating Temp.
-20°C to +55°C
Storage Temp.
-20°C to +80°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
FINISHES
Dark Gray
Silver Gray
LED
Lumileds
DRIVER
Inventronics
SUMMARY
WATTAGE
90
CCT
3000
INGRESS
66
FINISH
DG · SG
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
