ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 02 · 2026 · 01/09
INDOOR LIGHTING · SPOT LIGHTS

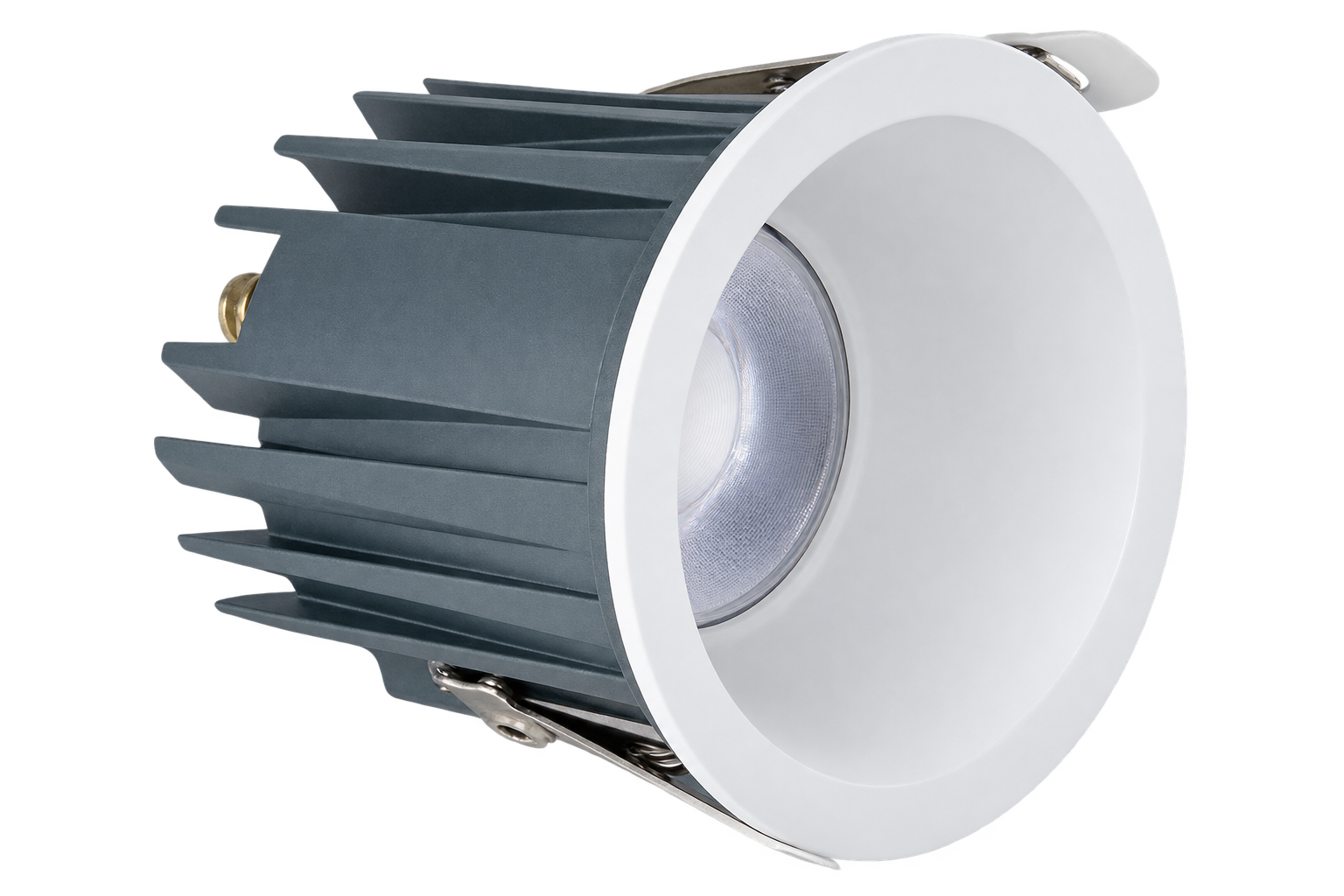

Spot Light
Waterproof
LFSLCR-18W-4K-IP54-WH
Product overview to be supplied.
MOUNTING
Ceiling recessed
LUMINAIRE DETAILS
Product Code
LFSLCR-18W-4K-IP54-WH
Product Type
Spot Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
18 W
Colour Temp.
4000 K
IP Rating
IP54
Chip Type
SMD
CRI
> 80
Life Time
50,000 Hours
Driver
External
Dimming
Non-Dimmable (On/Off)
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Size
Ø 110 × H 115 mm
Cutout
90 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
DIMENSIONAL DRAWING · MM
FINISHES
White
LED
CreeLumiledsBridgeluxVSTridonicEpistar
DRIVER
Luxflare
SUMMARY
WATTAGE
18
CCT
4000
INGRESS
54
FINISH
WH
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
