ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 01 · 2026 · 27/08
INDOOR LIGHTING · SPOT LIGHTS

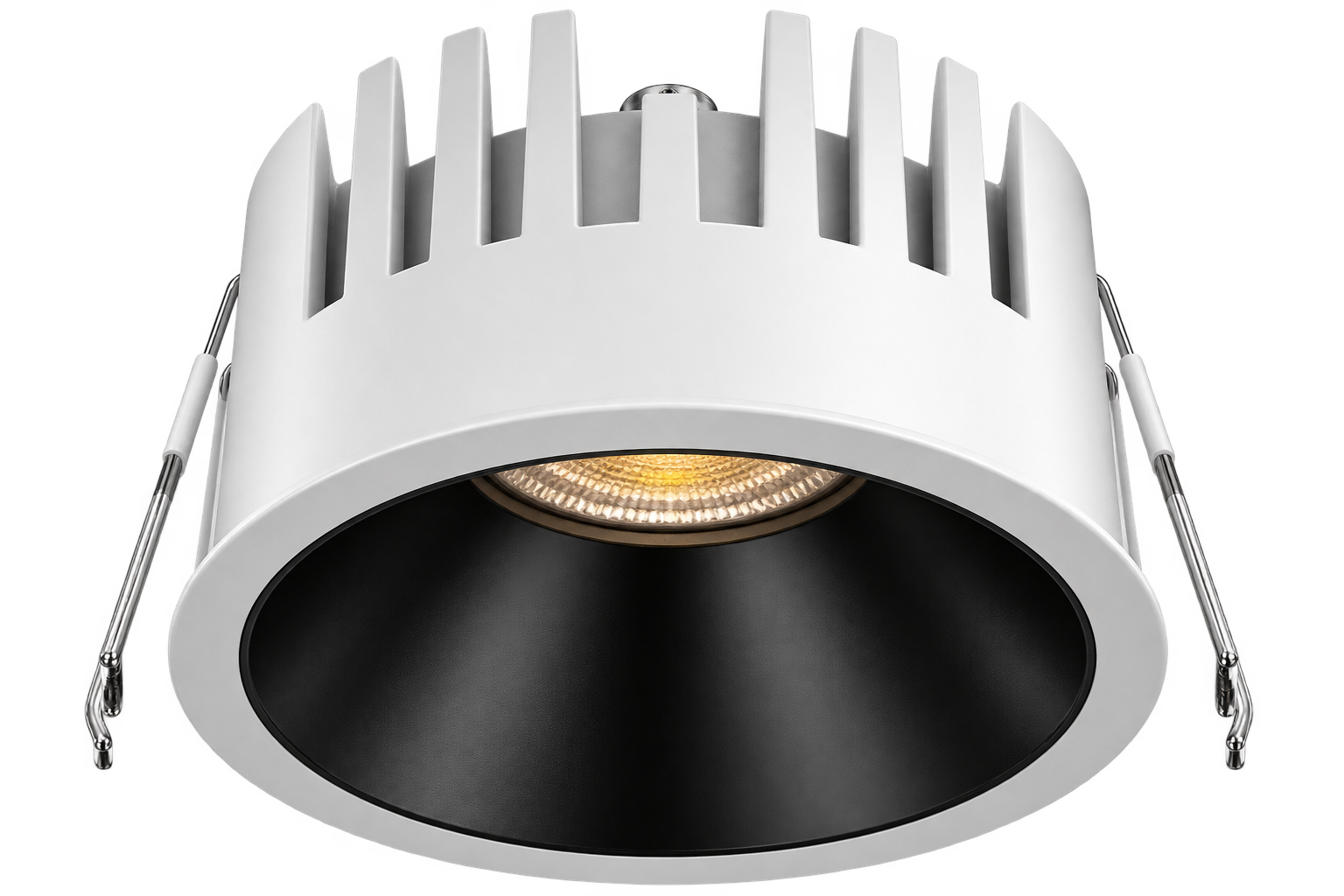

Spot Light IP65
adjustable
LFSLCR-18W-4K-IP65-WH
Product overview to be supplied.
MOUNTING
Ceiling recessed
LUMINAIRE DETAILS
Product Code
LFSLCR-18W-4K-IP65-WH
Product Type
Spot Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
18 W
Colour Temp.
4000 K
IP Rating
IP65
Chip Type
COB
Luminous Flux
1980 lm
CRI
> 80
Beam Angle
36°
Life Time
50,000 Hours
Driver
—
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Acrylic (PMMA)
Diffuser Optics
Lens
Size
Ø 102 × H 65 mm
Cutout
95 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C

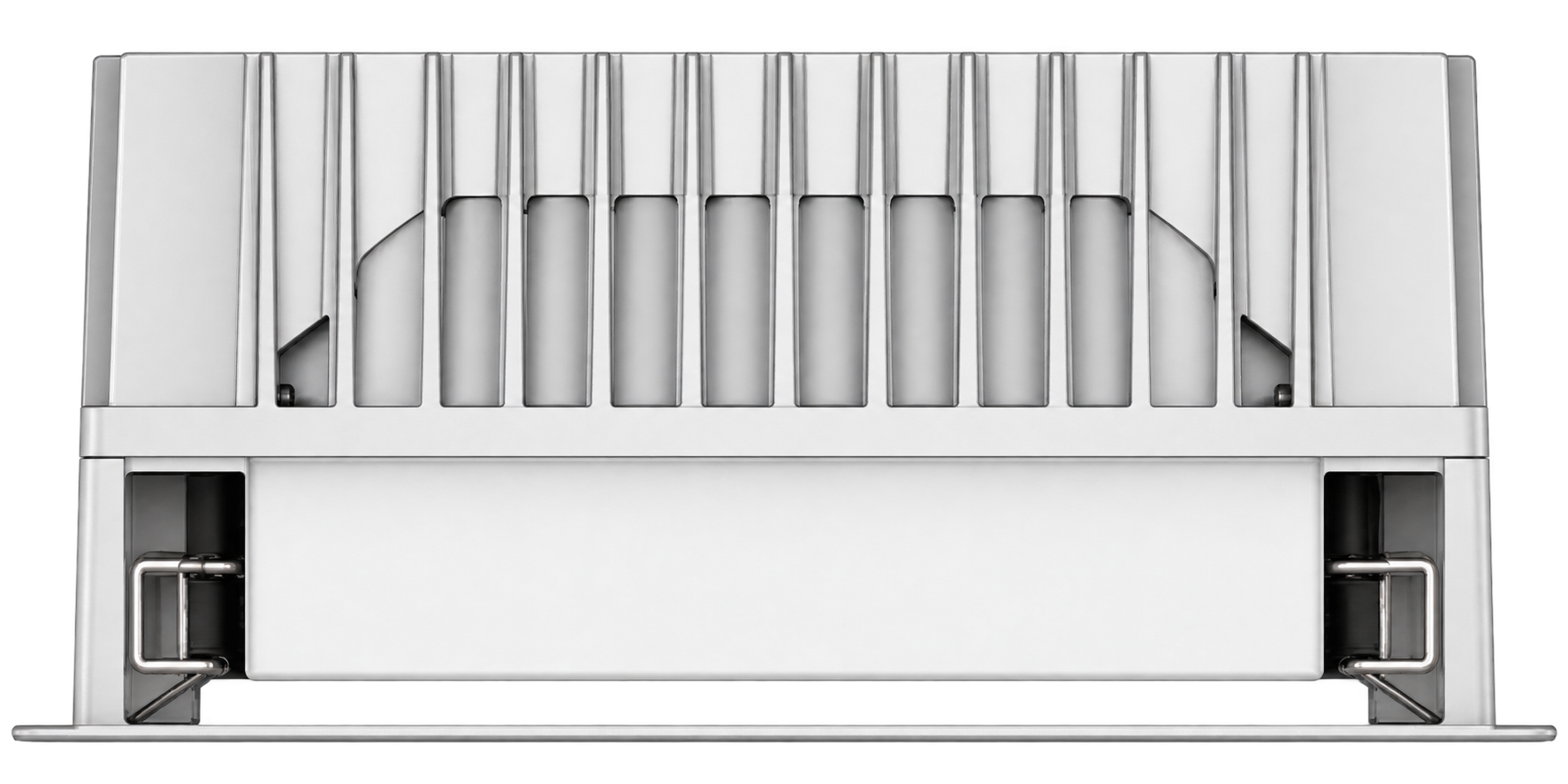

DIMENSIONAL DRAWING · MM
FINISHES
White
LED
CreeLumiledsBridgeluxVSTridonicEpistar
DRIVER
VSTridonicPhilipsOsramLifudEagleriseLuxflare
SUMMARY
WATTAGE
18
CCT
4000
INGRESS
65
FINISH
WH
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
