ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 01 · 2026 · 01/09
INDOOR LIGHTING · SPOT LIGHTS
Spot Light
adjustable
LFSLR-18W-4K-IP20-BK/WH
Product overview to be supplied.
MOUNTING
Recessed
LUMINAIRE DETAILS
Product Code
LFSLR-18W-4K-IP20-BK/WH
Product Type
Spot Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
18 W
Colour Temp.
4000 K
IP Rating
IP20
Chip Type
SMD
Luminous Flux
1000 lm
CRI
> 80
Beam Angle
24°
Life Time
50,000 Hours
Driver
External
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Aluminium (Extruded)
Diffuser Material
Polycarbonate (PC)
Diffuser Optics
Clear
Size
W 85 × H 80 mm
Cutout
75 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C

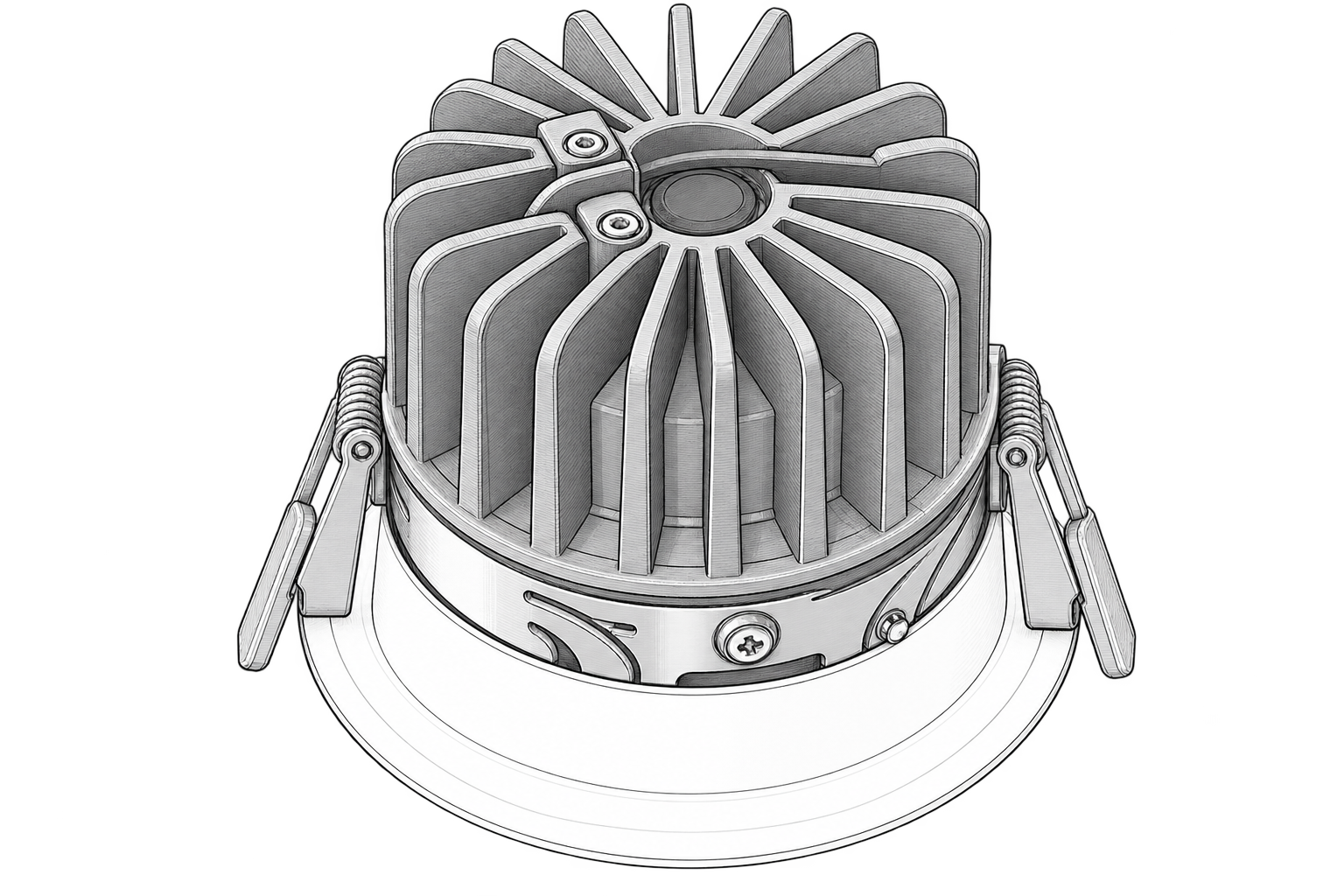

DIMENSIONAL DRAWING · MM
FINISHES
Black
White
LED
CreeLumiledsBridgeluxVSTridonicEpistar
DRIVER
VSTridonicPhilipsOsramLifudEagleriseLuxflare
SUMMARY
WATTAGE
18
CCT
4000
INGRESS
20
FINISH
BK · WH
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
