ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 01 · 2026 · 31/08
OUTDOOR LIGHTING · SPIKE & GARDEN

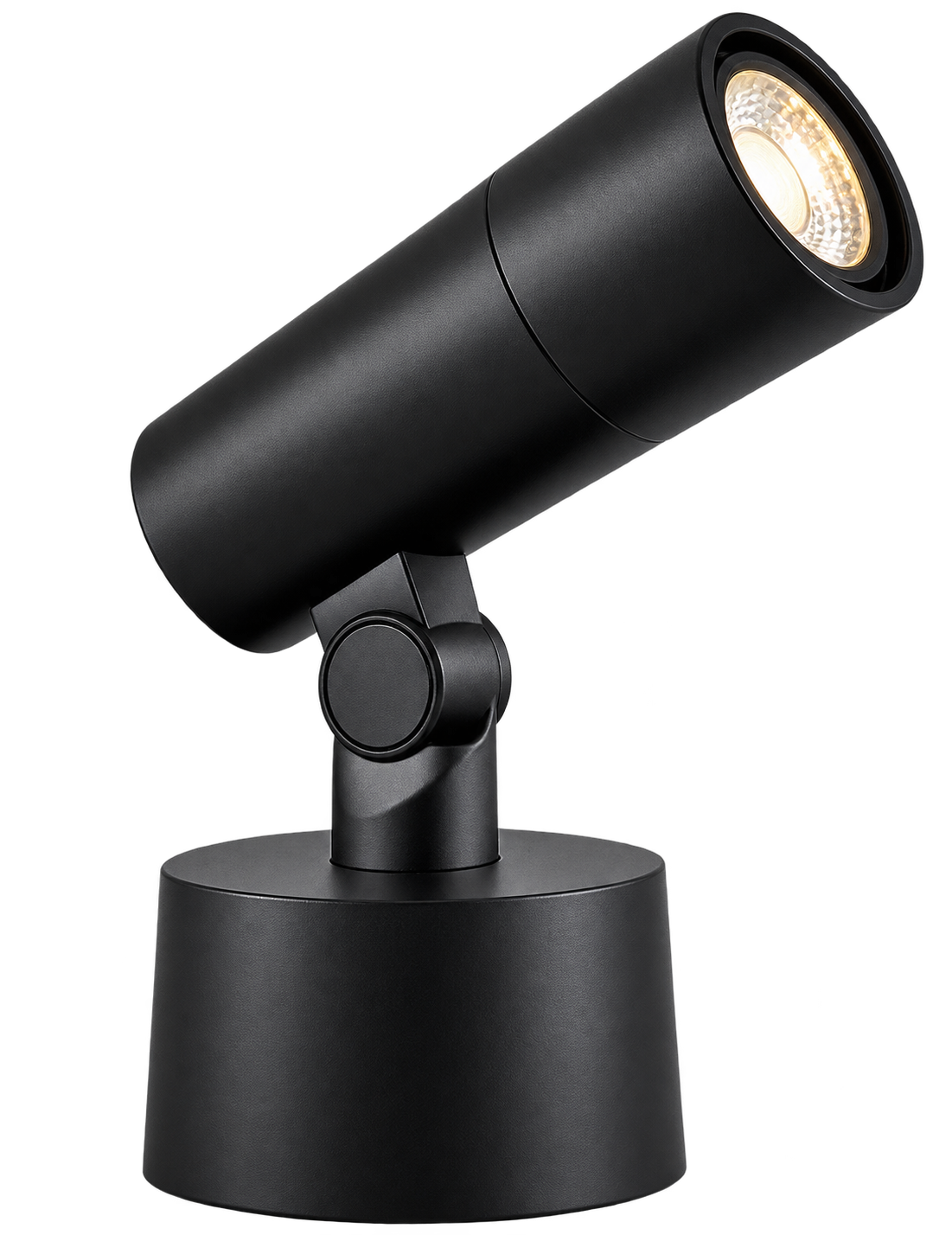

Spike Light
Coloumn Mounted
LFSGFS-18W-3K-IP65-BK
Product overview to be supplied.
MOUNTING
Floor surface
LUMINAIRE DETAILS
Product Code
LFSGFS-18W-3K-IP65-BK
Product Type
Spike Light
Application Area
Outdoor
PRODUCT DETAILS
Wattage
18 W
Colour Temp.
3000 K
IP Rating
IP65
Chip Type
SMD
Luminous Flux
1440 lm
CRI
> 80
Beam Angle
55°
Life Time
50,000 Hours
Driver
External
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Diffuser Optics
Clear
Size
L 123 × W 64 × H 132 mm
Operating Temp.
-20°C to +55°C
Storage Temp.
-20°C to +80°C
DIMENSIONAL DRAWING · MM
FINISHES
Black
LED
CreeLumiledsBridgeluxVSTridonicEpistar
DRIVER
Luxflare
SUMMARY
WATTAGE
18
CCT
3000
INGRESS
65
FINISH
BK
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
