ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 02 · 2026 · 27/07
INDOOR LIGHTING · LED DOWNLIGHTS

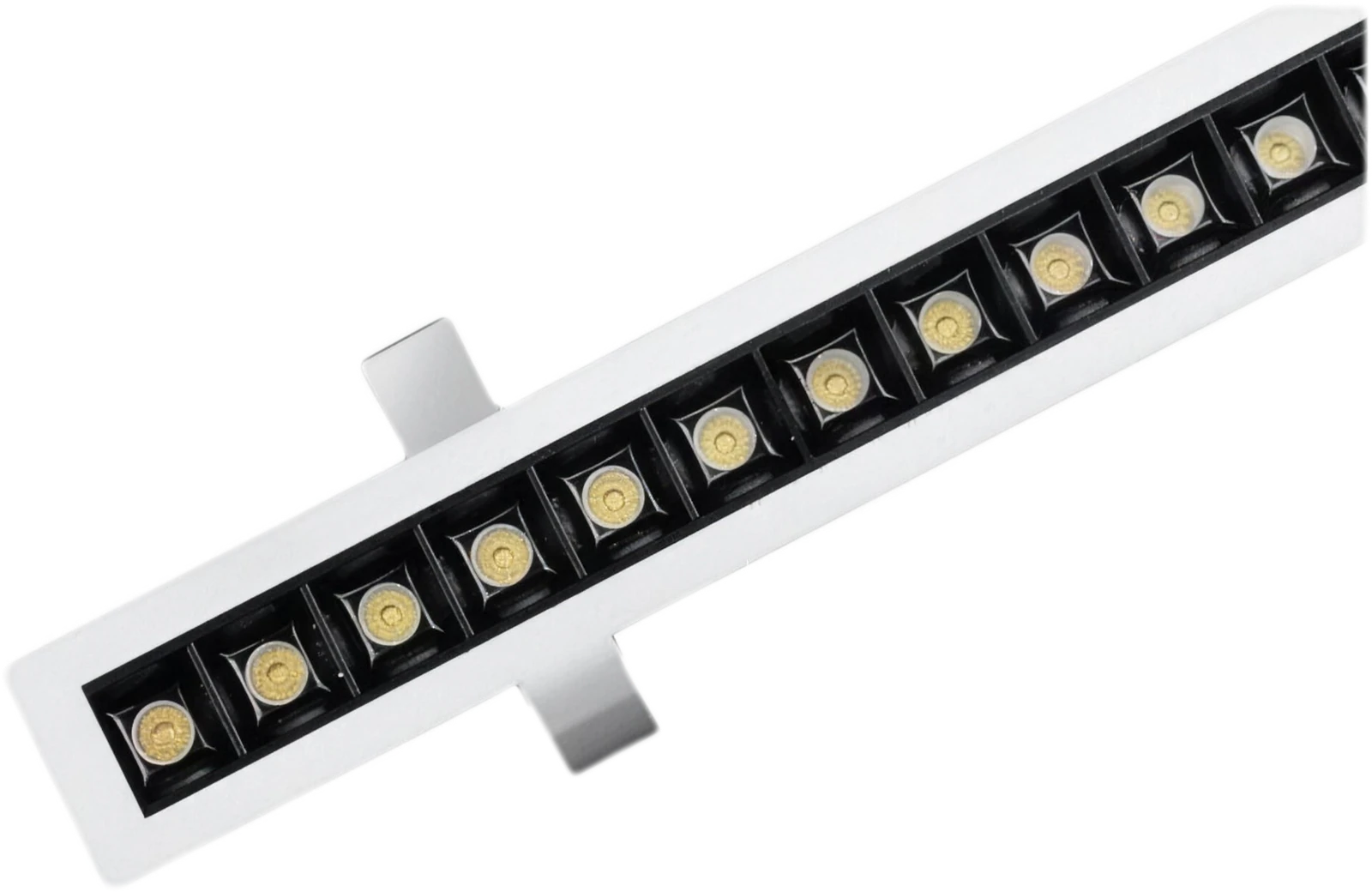

Recessed Linear Downlight 18W
recessed profile
LFDLLCR-18W-3K-IP40
600 mm recessed linear downlight — a multi-cell die-cast profile with 35° or 60° clear-glass optics for continuous accent runs.
MOUNTING
Recessed
LUMINAIRE DETAILS
Product Code
LFDLLCR-18W-3K-IP40
Product Type
Down Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
18 W
Colour Temp.
3000 K
IP Rating
IP40
Chip Type
SMD
Luminous Flux
1440 lm
CRI
> 80
Beam Angle
35° · 60°
Life Time
50,000 Hours
Driver
External/Integrated
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Diffuser Optics
Clear
Size
L 600 x W 50 x H 30mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
35°60°
FINISHES
White
Black
LED
CreeBridgeluxEpistarOsram
DRIVER
LifudEagleriseLuxflareSosen
SUMMARY
WATTAGE
18
CCT
3000
INGRESS
40
FINISH
WH · BK
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
LUXFLARE LIGHTINGREV 02 · 2026 · 27/07INDOOR
