ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 01 · 2026 · 17/08
OUTDOOR LIGHTING · SPIKE & GARDEN
Outdoor LED Spike 10W H115
outdoor spike
LFSGS-10W-3/4/6K-IP67-BK

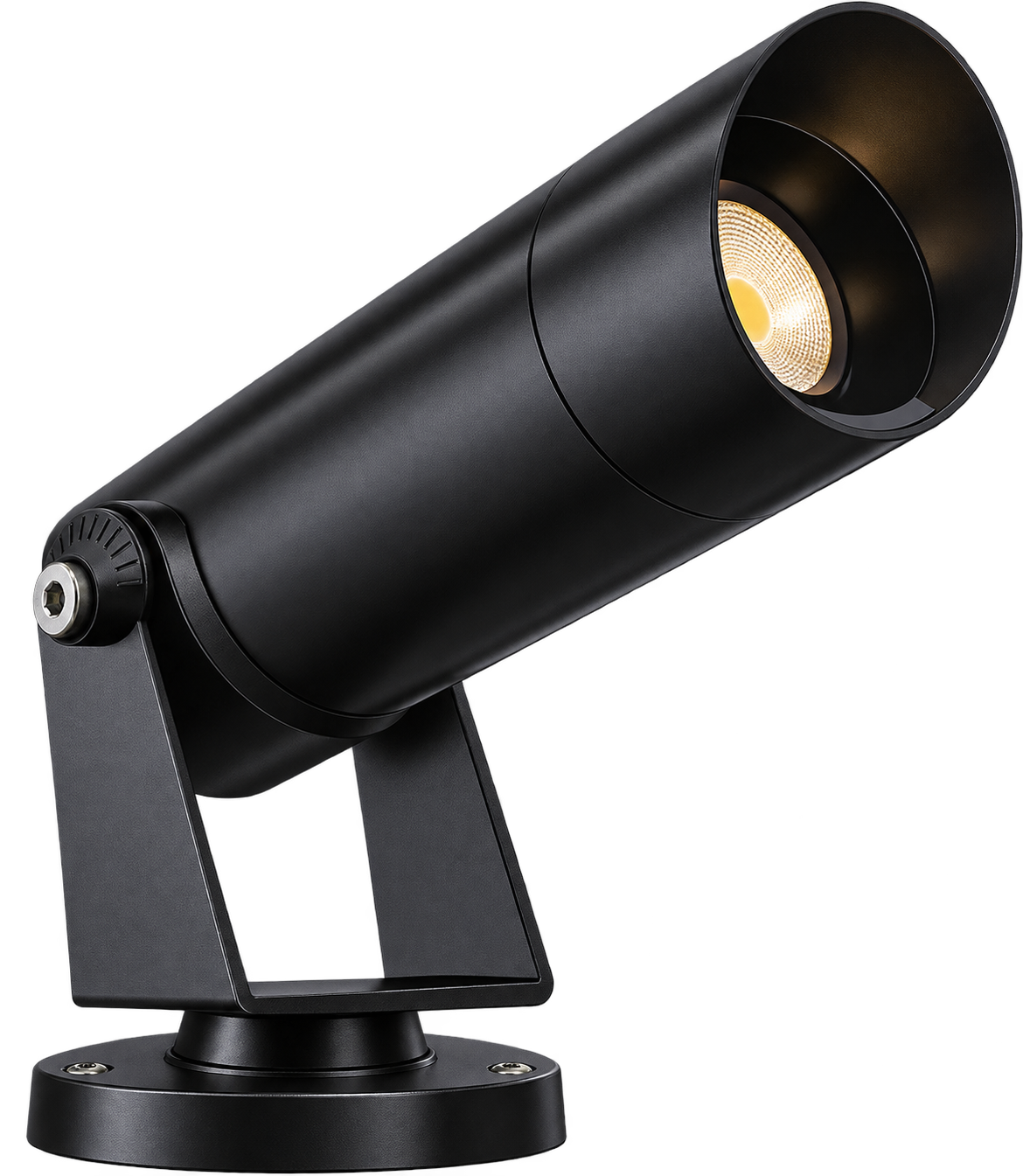

The 115 mm-tall body of the Ø45 mm, 10 W outdoor spike — the same SMD engine, glass diffuser and 24° beam as its sibling sheet, run from 230V AC. Rated IP67, offered at 3000K, 4000K or 6000K, black finish.
MOUNTING
Surface
LUMINAIRE DETAILS
Product Code
LFSGS-10W-3/4/6K-IP67-BK
Product Type
Spike Light
Application Area
Outdoor
PRODUCT DETAILS
Wattage
10 W
Colour Temp.
3000 / 4000 / 6000 K
IP Rating
IP67
Chip Type
SMD
Luminous Flux
775 lm
CRI
> 80
Beam Angle
24°
Life Time
50,000 Hours
Driver
Internal / External
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Size
Ø 45 × H 115 mm
Operating Temp.
-20°C to +55°C
Storage Temp.
-20°C to +80°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
24°
FINISHES
Black
LED
CreeBridgeluxEpistar
DRIVER
LifudLuxflareNZ
SUMMARY
WATTAGE
10
CCT
3000 · 4000 · 6000
INGRESS
67
FINISH
BK
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
