ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 00 · 2026 · 27/07
INDOOR LIGHTING · WALL LUMINAIRES
Mirror Light
mirror
LFWLS-8W-3K-IP20-WH/BK/SG

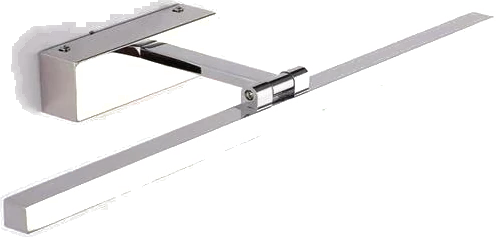

A slimline extruded-aluminium light for mounting above or beside a mirror, running an 8 W COB module for 300 lm behind a polycarbonate diffuser. Powered by an external driver at IP20, in white, black or silver-grey.
MOUNTING
Surface
LUMINAIRE DETAILS
Product Code
LFWLS-8W-3K-IP20-WH/BK/SG
Product Type
Wall Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
8 W
Colour Temp.
3000 K
IP Rating
IP20
Chip Type
COB
Luminous Flux
300 lm
CRI
> 80
Beam Angle
120°
Life Time
50,000 Hours
Driver
External
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Aluminium (Extruded)
Diffuser Material
Polycarbonate (PC)
Size
L 600 × H 195 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
120°
FINISHES
White
Black
Silver Gray
LED
BridgeluxEpistarOsram
DRIVER
LifudLuxflareNZ
SUMMARY
WATTAGE
8
CCT
3000
INGRESS
20
FINISH
WH · BK · SG
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
