ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 01 · 2026 · 27/07
INDOOR LIGHTING · SPOT LIGHTS

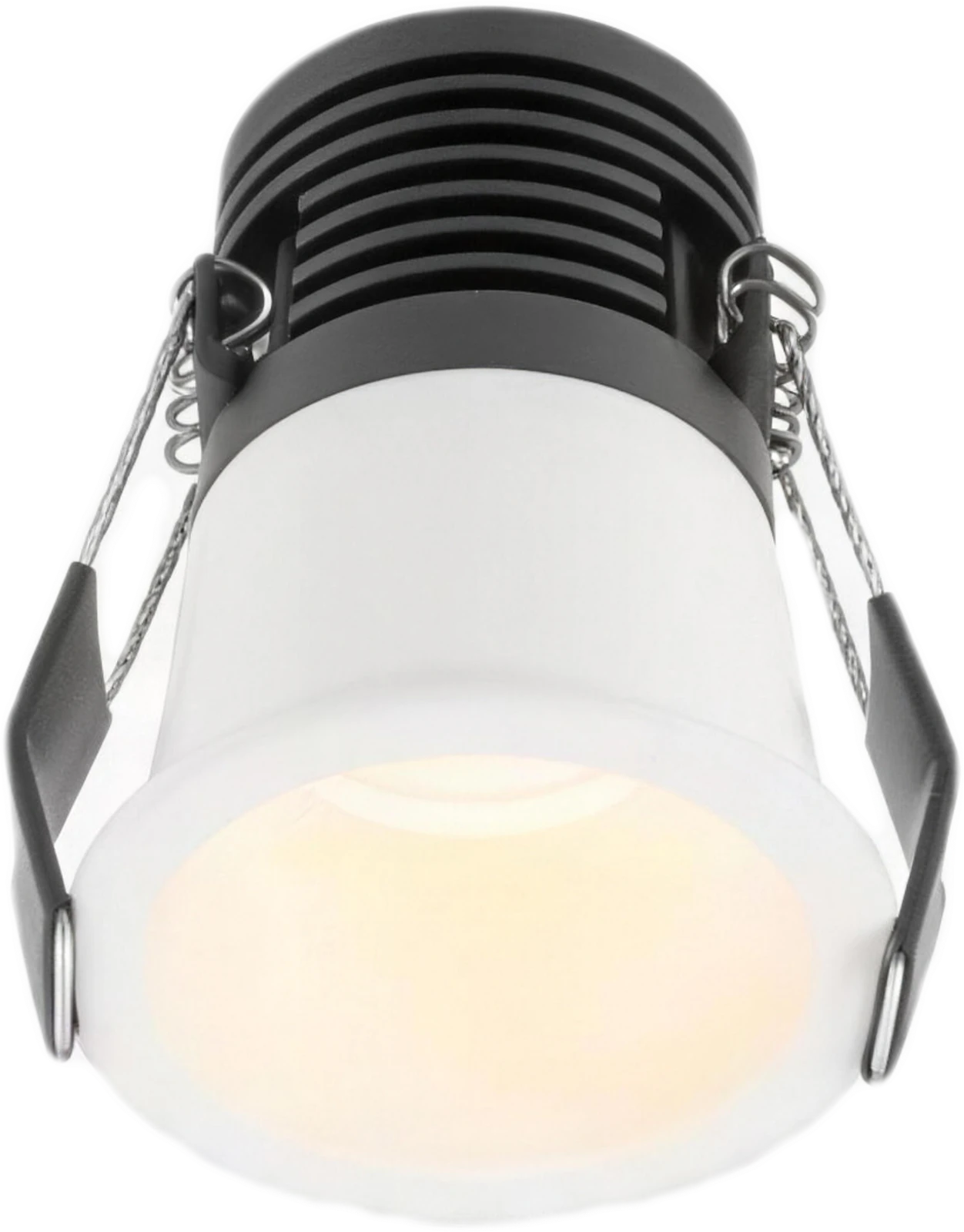

Mini Recessed Spot Light
miniature
LFSLCR-3W-3K-IP65
A 30 mm aperture pinhole spot — small enough to disappear into joinery, display cases and stair soffits, and sealed to IP65 so it can go into wet-room ceilings. 24° or 36°.
MOUNTING
Recessed
LUMINAIRE DETAILS
Product Code
LFSLCR-3W-3K-IP65
Product Type
Spot Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
3 W
Colour Temp.
3000 K
IP Rating
IP65
Chip Type
COB
Luminous Flux
300 lm
CRI
> 80
Beam Angle
24° · 36°
Life Time
50,000 Hours
Driver
External
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Diffuser Optics
Clear
Size
Ø 35 × H 61 mm
Cutout
30 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
24°36°
FINISHES
White
LED
BridgeluxEpistarOsram
DRIVER
LifudEagleriseLuxflareNZ
SUMMARY
WATTAGE
3
CCT
3000
INGRESS
65
FINISH
WH
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
LUXFLARE LIGHTINGREV 01 · 2026 · 27/07INDOOR
