ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 00 · 2026 · 27/07
INDOOR LIGHTING · LINEAR PROFILES

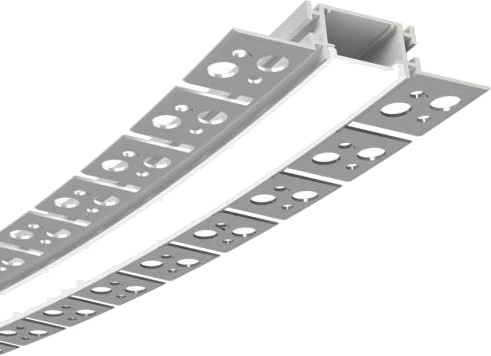

Recessed Linear Light 20W
recessed
LFLNR-20W-3K-IP20-WH
A 20 W recessed linear light at 3000K, supplied in 600 mm or 900 mm runs, in an aluminium die-cast body behind a polycarbonate diffuser. DALI dimming and a 24V DC external driver come standard, finished in white.
MOUNTING
Recessed
LUMINAIRE DETAILS
Product Code
LFLNR-20W-3K-IP20-WH
Product Type
Linear Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
20 W
Colour Temp.
3000 K
IP Rating
IP20
Chip Type
SMD/COB
Luminous Flux
2200 lm
CRI
> 80
Beam Angle
120°
Life Time
50,000 Hours
Driver
External
Dimming
DALI
Input Voltage
24V DC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Polycarbonate (PC)
Size
L 600 / 900 × W 80 × H 25 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
120°
FINISHES
White
LED
BridgeluxEpistarOsram
DRIVER
LifudLuxflareNZ
SUMMARY
WATTAGE
20
CCT
3000
INGRESS
20
FINISH
WH
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
