ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 06 · 2026 · 31/08
OUTDOOR LIGHTING · SPIKE & GARDEN

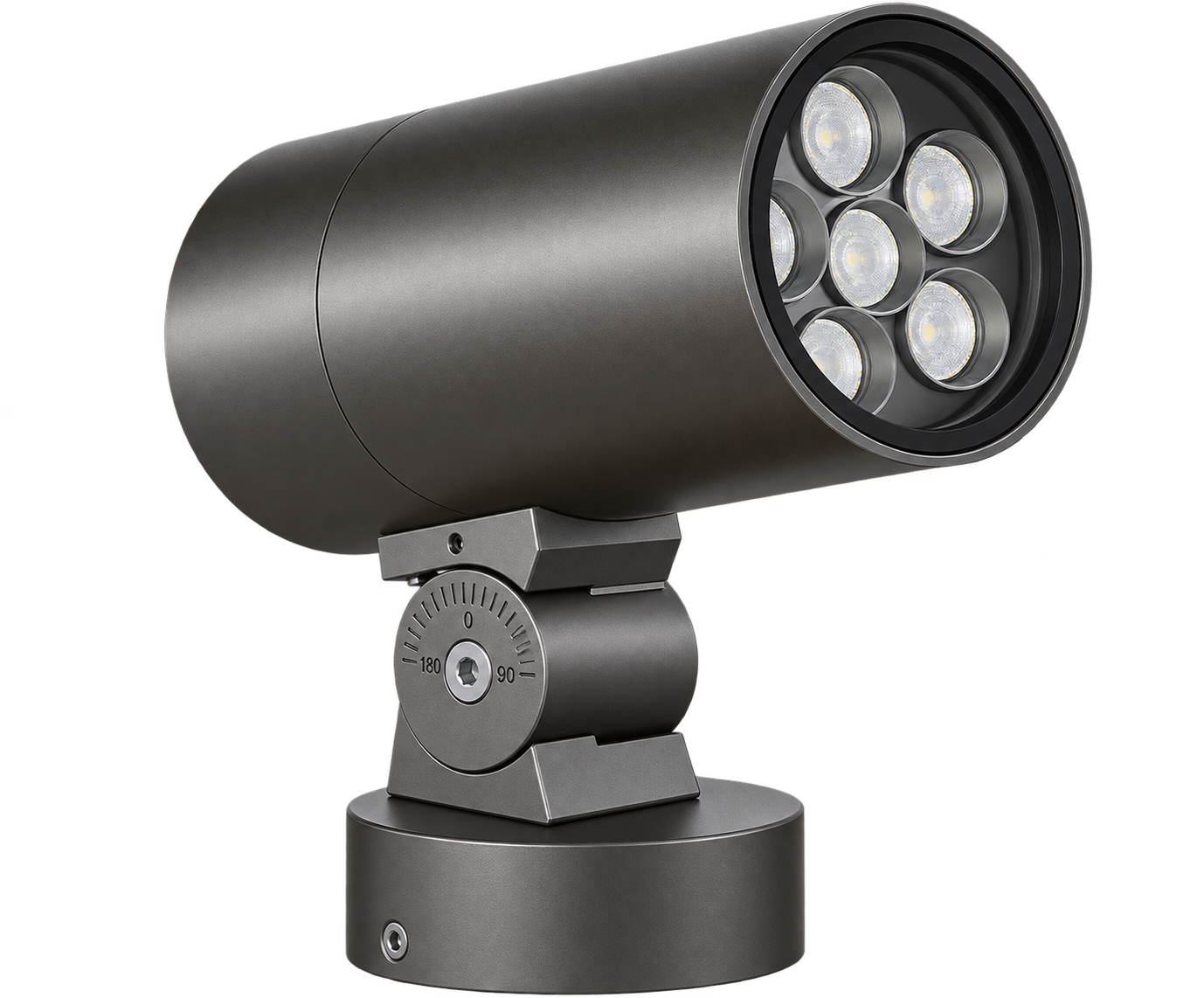

LED Spike Light

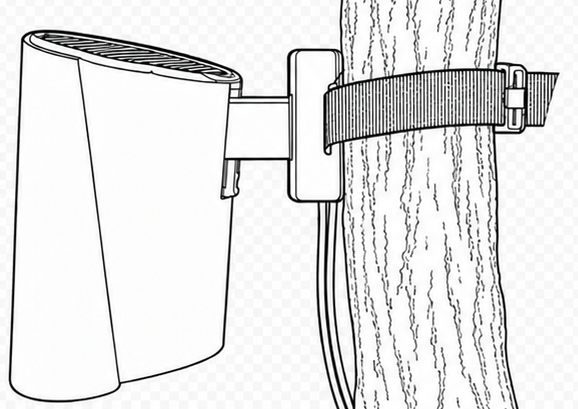

Tree Strap Adjustable Belt
LF-SP-F-S-15W3K-IP65
Product overview to be supplied.
MOUNTING
Surface
LUMINAIRE DETAILS
Product Code
LF-SP-F-S-15W3K-IP65
Product Type
Spike Light
Application Area
Outdoor
PRODUCT DETAILS
Wattage
15 W
Colour Temp.
3000 K
IP Rating
IP65
Chip Type
SMD
Luminous Flux
1200 lm
CRI
> 80
Beam Angle
120°
Life Time
50,000 Hours
Driver
Integrated
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Optics
Clear
Size
Ø 84 × L 136 × H 164 mm
Operating Temp.
-20°C to +55°C
Storage Temp.
-20°C to +80°C
DIMENSIONAL DRAWING · MM
FINISHES
RAL 7026
Custom Colour
LED
CreeTridonic
DRIVER
Luxflare
SUMMARY
WATTAGE
15
CCT
3000
INGRESS
65
FINISH
CS
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
