ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 00 · 2026 · 27/07
OUTDOOR LIGHTING · IN-GROUND

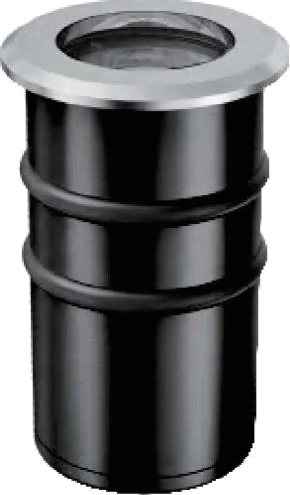

Inground Light 2W
floor recessed
LFIGFR-2W-3K-IP67-BK
The smallest whole-unit inground light in the range at 2 W, COB behind a glass diffuser with a narrow 15° beam, run from 24V DC. Rated IP67, black finish.
MOUNTING
Floor recessed
LUMINAIRE DETAILS
Product Code
LFIGFR-2W-3K-IP67-BK
Product Type
In-ground Light
Application Area
Outdoor
PRODUCT DETAILS
Wattage
2 W
Colour Temp.
3000 K
IP Rating
IP67
Chip Type
COB
Luminous Flux
120 lm
CRI
> 80
Beam Angle
15°
Life Time
50,000 Hours
Driver
External
Dimming
Non-Dimmable (On/Off)
Input Voltage
24V DC
PHYSICAL DETAILS
Housing Material
STEEL
Diffuser Material
Glass
Size
Ø 32 × H 60 mm
Operating Temp.
-20°C to +55°C
Storage Temp.
-20°C to +80°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
15°
FINISHES
Black
LED
CreeBridgeluxEpistarOsram
DRIVER
LifudLuxflareNZ
SUMMARY
WATTAGE
2
CCT
3000
INGRESS
67
FINISH
BK
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
