ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 02 · 2026 · 31/08
OUTDOOR LIGHTING · IN-GROUND

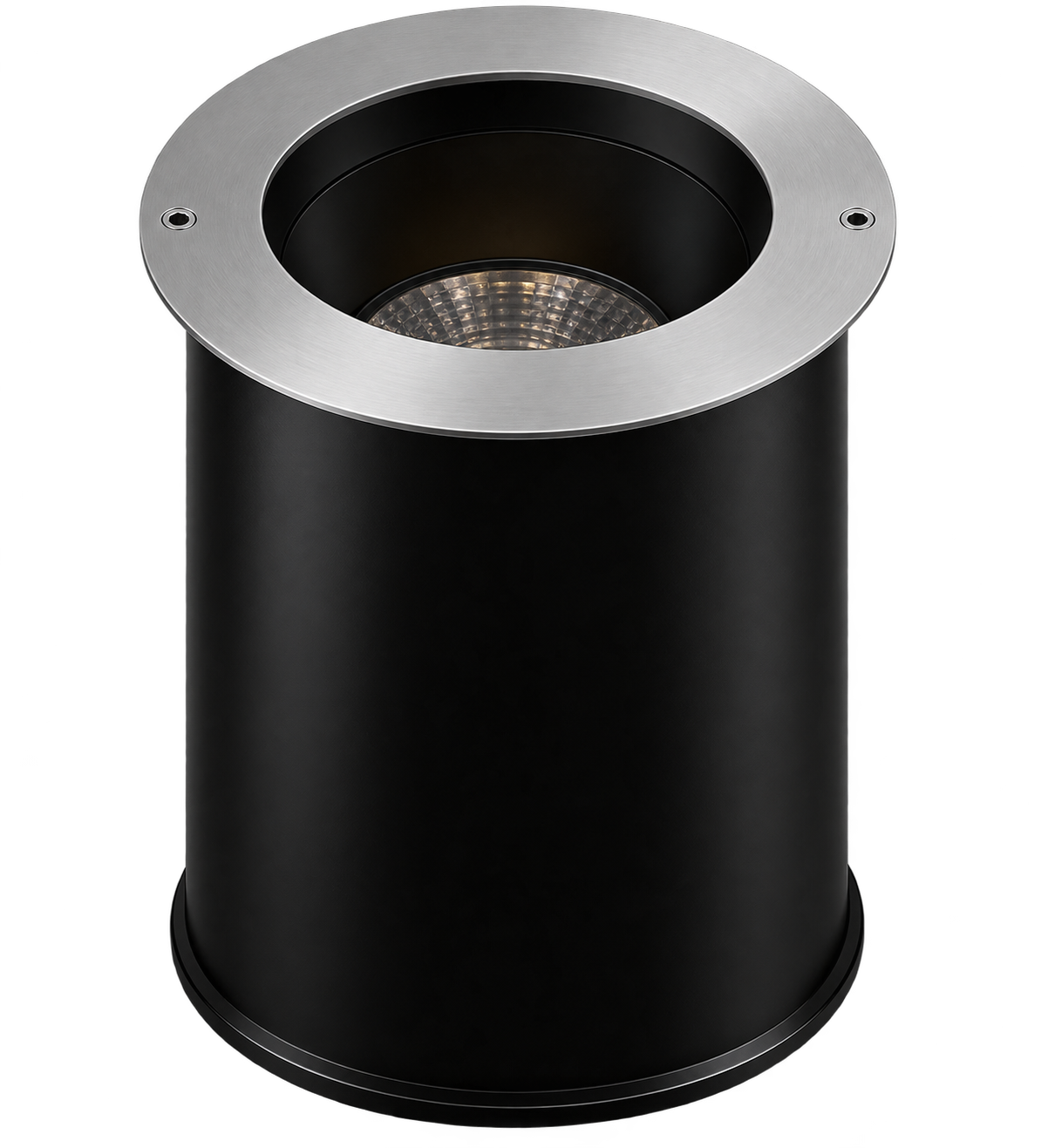

In-ground Light
uplight
LFIGFR-8W-3K-IP67-BK
Product overview to be supplied.
MOUNTING
Floor recessed
LUMINAIRE DETAILS
Product Code
LFIGFR-8W-3K-IP67-BK
Product Type
In-ground Light
Application Area
Outdoor
PRODUCT DETAILS
Wattage
8 W
Colour Temp.
3000 K
IP Rating
IP67
Chip Type
SMD
Luminous Flux
560 lm
CRI
> 80
Beam Angle
30°
Life Time
50,000 Hours
Driver
60W
Dimming
—
Input Voltage
24V DC
PHYSICAL DETAILS
Housing Material
Alu Die Cast · Stainless Steel
Diffuser Material
Glass
Diffuser Optics
Clear
Size
Ø 80 × H 105 mm
Operating Temp.
-20°C to +55°C
Storage Temp.
-20°C to +80°C

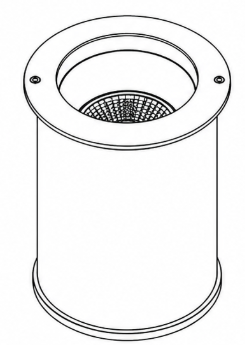

DIMENSIONAL DRAWING · MM
FINISHES
Black
LED
CreeLumiledsBridgeluxVSTridonicEpistar
DRIVER
VSTridonicPhilipsOsramLifudEagleriseLuxflare
SUMMARY
WATTAGE
8
CCT
3000
INGRESS
67
FINISH
BK
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
LUXFLARE LIGHTINGREV 02 · 2026 · 31/08OUTDOOR
