ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 03 · 2026 · 27/07
INDOOR LIGHTING · SPOT LIGHTS

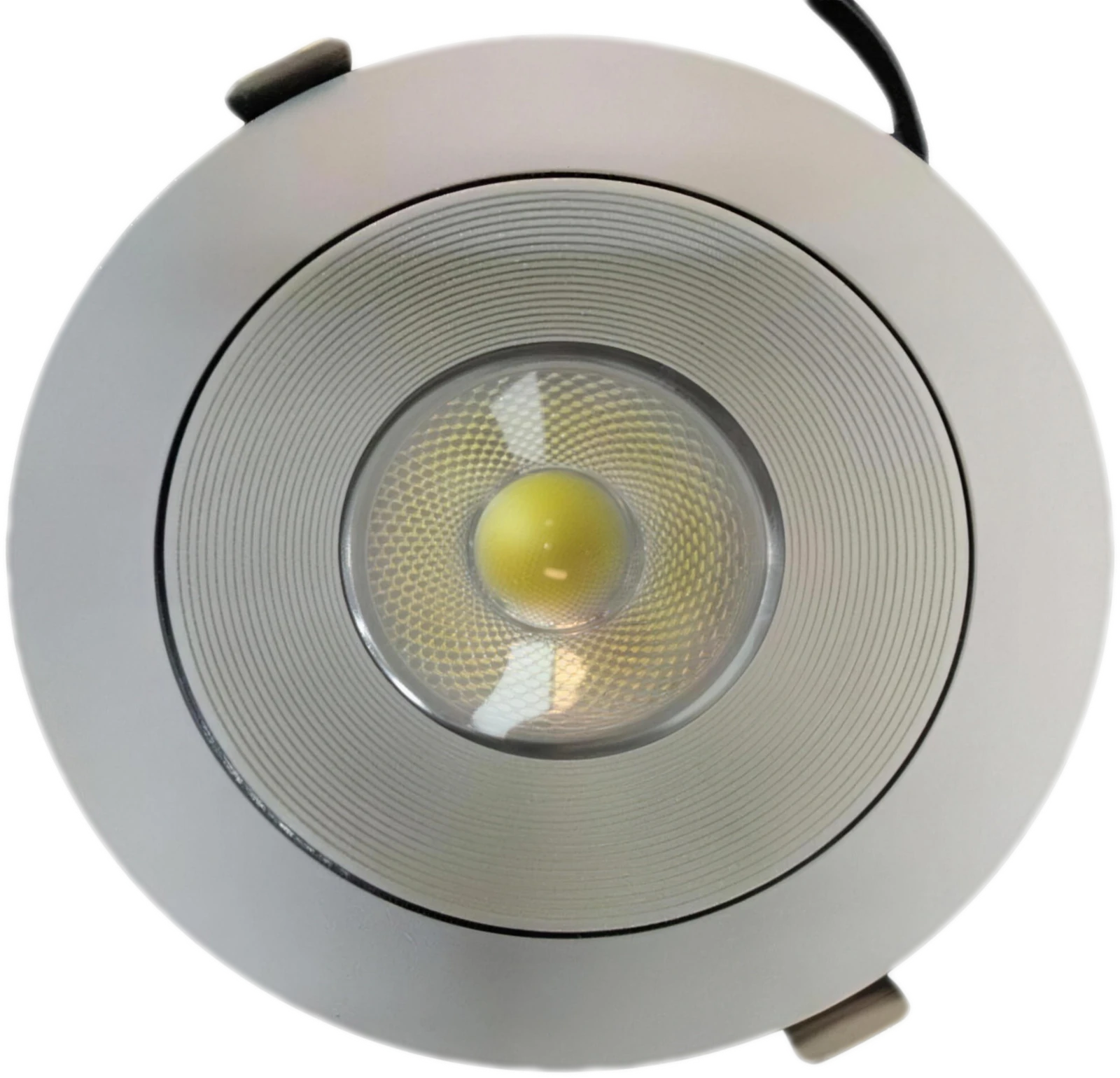

Adjustable Recessed Spot 7W
adjustable
LFSLCRA-7W-3K-IP44-WH
A tilting COB spot in a Ø90 mm trim — the gimbal swings within the bezel so the beam can be aimed after installation without breaking the ceiling line. Glass lens optics hold a tight 36° beam.
MOUNTING
Ceiling recessed
LUMINAIRE DETAILS
Product Code
LFSLCRA-7W-3K-IP44-WH
Product Type
Spot Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
7 W
Colour Temp.
3000 K
IP Rating
IP44
Chip Type
COB
Luminous Flux
840 lm
CRI
> 80
Beam Angle
36°
Life Time
50,000 Hours
Driver
External
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Diffuser Optics
Lens
Size
Ø 90 mm
Cutout
75 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
36°
FINISHES
White
LED
BridgeluxEpistar
DRIVER
LifudEagleriseLuxflare
SUMMARY
WATTAGE
7
CCT
3000
INGRESS
44
FINISH
WH
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
