ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 01 · 2026 · 27/07
INDOOR LIGHTING · SPOT LIGHTS

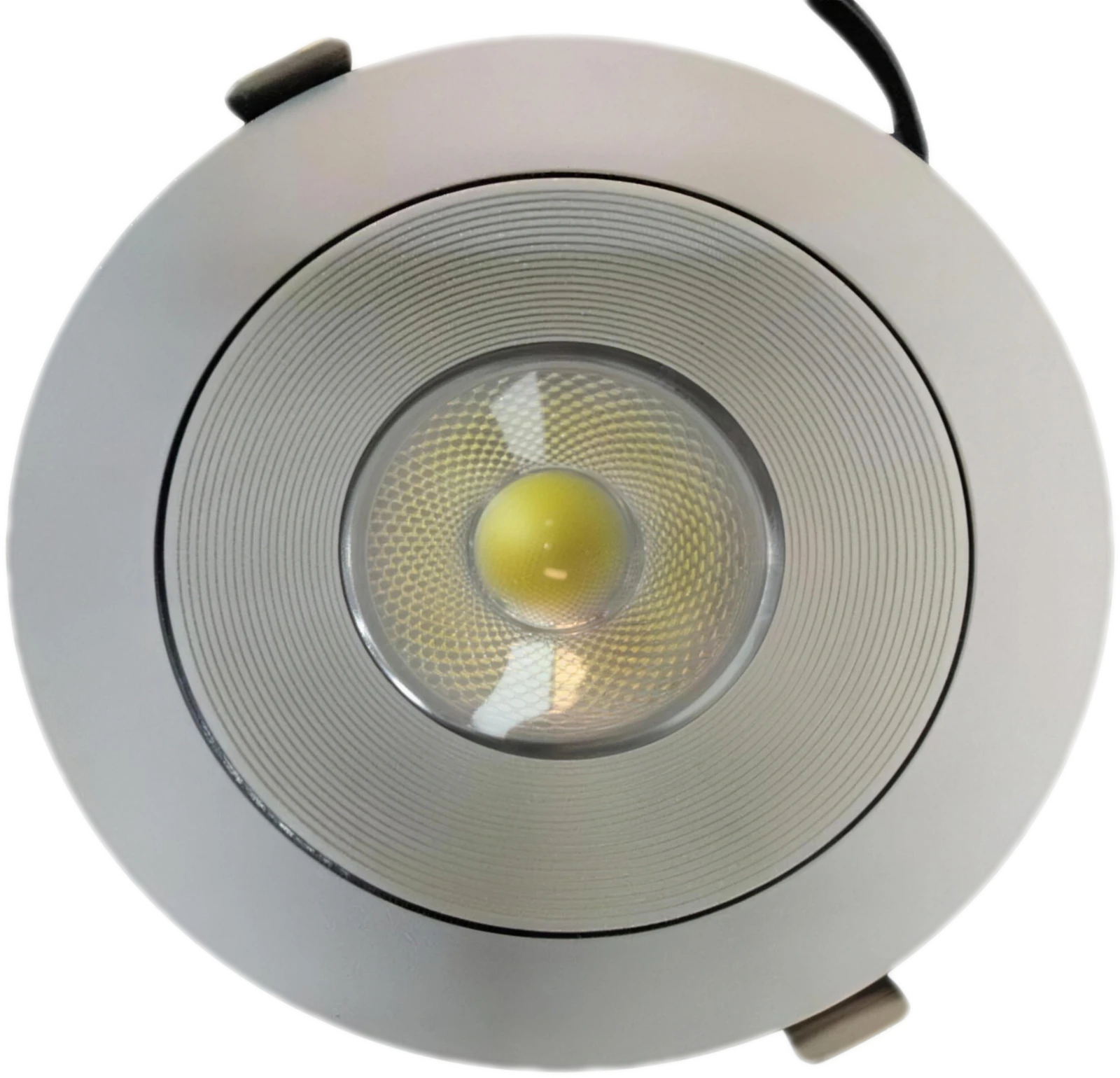

Adjustable Recessed Spot 18W
adjustable
LFSLCRA-18W-3K-IP44-WH
The largest adjustable spot in the range — 18 W behind a Ø140 mm trim, for high ceilings where a smaller aperture cannot deliver the throw. Tilts on its gimbal to aim the 36° beam.
MOUNTING
Ceiling recessed
LUMINAIRE DETAILS
Product Code
LFSLCRA-18W-3K-IP44-WH
Product Type
Spot Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
18 W
Colour Temp.
3000 K
IP Rating
IP44
Chip Type
COB
Luminous Flux
2160 lm
CRI
> 80
Beam Angle
36°
Life Time
50,000 Hours
Driver
External
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Diffuser Optics
Lens
Size
Ø 140 mm
Cutout
110 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
36°
FINISHES
White
LED
BridgeluxEpistar
DRIVER
LifudEagleriseLuxflare
SUMMARY
WATTAGE
18
CCT
3000
INGRESS
44
FINISH
WH
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
