ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 06 · 2026 · 08/09
INDOOR LIGHTING · SPOT LIGHTS
Spot Light
reccesed-adjustable
LFSLR-2W-3K-IP20-BK
Product overview to be supplied.
MOUNTING
Recessed
LUMINAIRE DETAILS
Product Code
LFSLR-2W-3K-IP20-BK
Product Type
Spot Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
2 W
Colour Temp.
3000 K
IP Rating
IP20
Chip Type
COB
Luminous Flux
120 lm
CRI
> 90
Beam Angle
15°
Life Time
50,000 Hours
Driver
External
Dimming
DALI
Input Voltage
24V DC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Diffuser Optics
Clear
Size
Ø 24 × L 38 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C

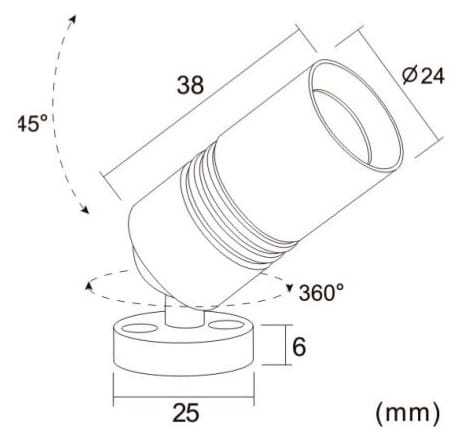

DIMENSIONAL DRAWING · MM
FINISHES
Black
LED
CreeLumiledsBridgeluxVSTridonicEpistar
DRIVER
OsramLuxflare
SUMMARY
WATTAGE
2
CCT
3000
INGRESS
20
FINISH
BK
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
