ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 01 · 2026 · 08/10
INDOOR LIGHTING · SPOT LIGHTS
Track Spot Light
track-mounted
NZ-MTL20-SPD33BK-6W/30
A Ø33 mm track-mounted spot pairing a COB/SMD chip with a 24° beam for 480 lm output, available in 3000K, 4000K or 6000K behind clear glass. Runs on 48V DC and is finished in white or black.
MOUNTING
Track mounted
LUMINAIRE DETAILS
Product Code
NZ-MTL20-SPD33BK-6W/30
Product Type
Spot Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
6W
Colour Temp.
3000 K
IP Rating
IP20
Chip Type
COB
Luminous Flux
480 lm
CRI
> 90
Beam Angle
24°
Life Time
50,000 Hours
Dimming
Non-Dimmable (On/Off)
Input Voltage
48V DC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Diffuser Optics
Lens
Size
Ø 33 × L 85 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C

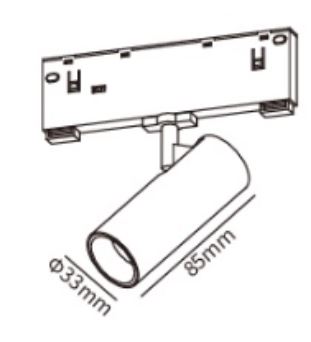

DIMENSIONAL DRAWING · MM
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
24°
FINISHES
White
Black
LED
BridgeluxEpistarOsram
DRIVER
VSTridonicOsramLifudEagleriseLuxflare
SUMMARY
WATTAGE
6W
CCT
3000
INGRESS
20
FINISH
WH · BK
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
