ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 06 · 2026 · 08/10
INDOOR LIGHTING · SPOT LIGHTS

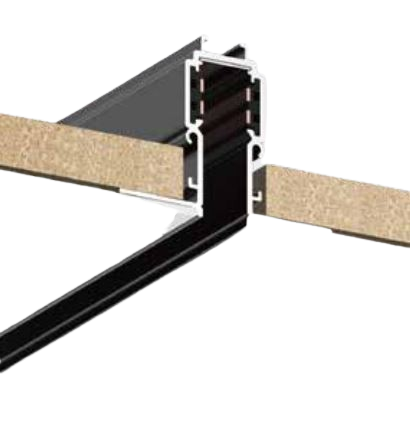

Magnetic Track Rail
Recessed mounted
NZ-TRACK-48-W55-BK
Product overview to be supplied.
MOUNTING
Ceiling recessed
LUMINAIRE DETAILS
Product Code
NZ-TRACK-48-W55-BK
Product Type
Spot Light
Application Area
Indoor
PRODUCT DETAILS
Life Time
50,000 Hours
Dimming
Non-Dimmable (On/Off)
Input Voltage
48V DC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Size
L 1000 × W 55 × H 43 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C

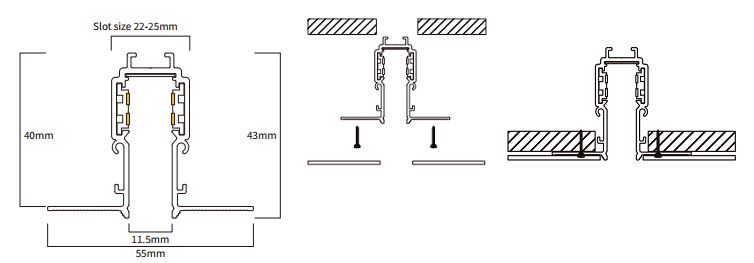

DIMENSIONAL DRAWING · MM
LIGHT DISTRIBUTION
24°
FINISHES
Black
LED
CreeLumiledsBridgeluxVSTridonicEpistar
DRIVER
VSTridonicPhilipsOsramLifudEagleriseLuxflare
SUMMARY
WATTAGE
0
CCT
0
INGRESS
44
FINISH
BK
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
