ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 05 · 2026 · 08/10
INDOOR LIGHTING · LED DOWNLIGHTS

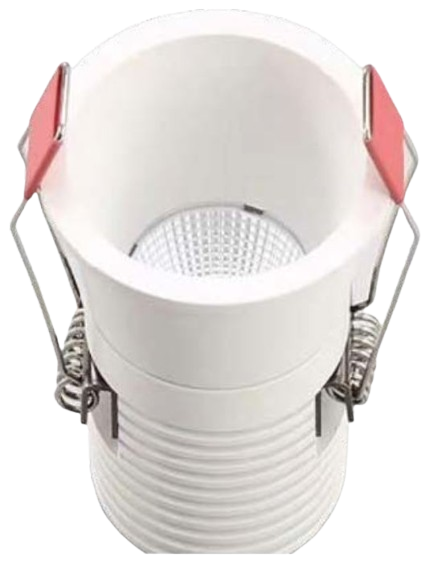

Down Light
Recessed
LFRC-LD-VEDI-C-BK
Product overview to be supplied.
MOUNTING
Ceiling recessed
LUMINAIRE DETAILS
Product Code
LFRC-LD-VEDI-C-BK
Product Type
Down Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
15 W
Colour Temp.
3000 K
IP Rating
IP54
Chip Type
COB
Luminous Flux
920 lm
CRI
> 80
Beam Angle
35° · 30° · 24°
Life Time
50,000 Hours
Driver
EXTERNAL
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Diffuser Optics
Clear
Size
Ø 75 × H 100 mm
Cutout
65 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
DIMENSIONAL DRAWING · MM
PHOTOMETRIC · POLAR
FINISHES
White
LED
CreeVSTridonicEpistar
DRIVER
VSTridonicLuxflare
SUMMARY
WATTAGE
15
CCT
3000
INGRESS
54
FINISH
WH
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
